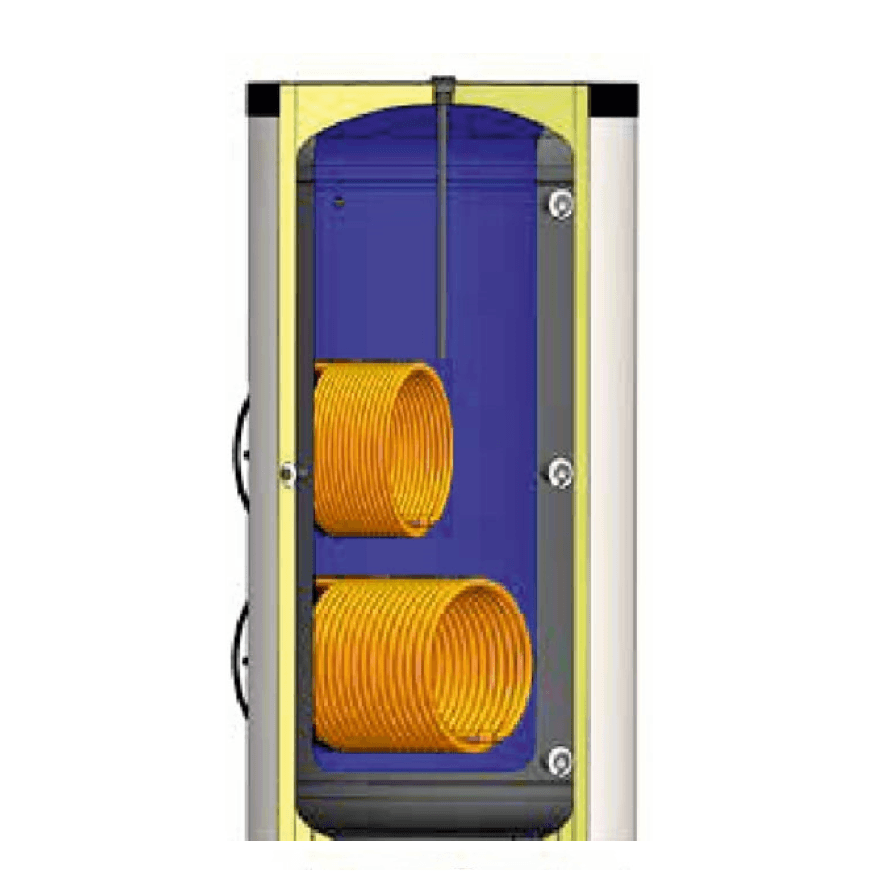

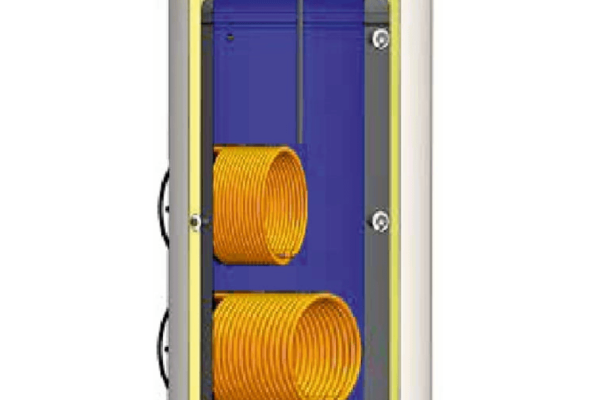

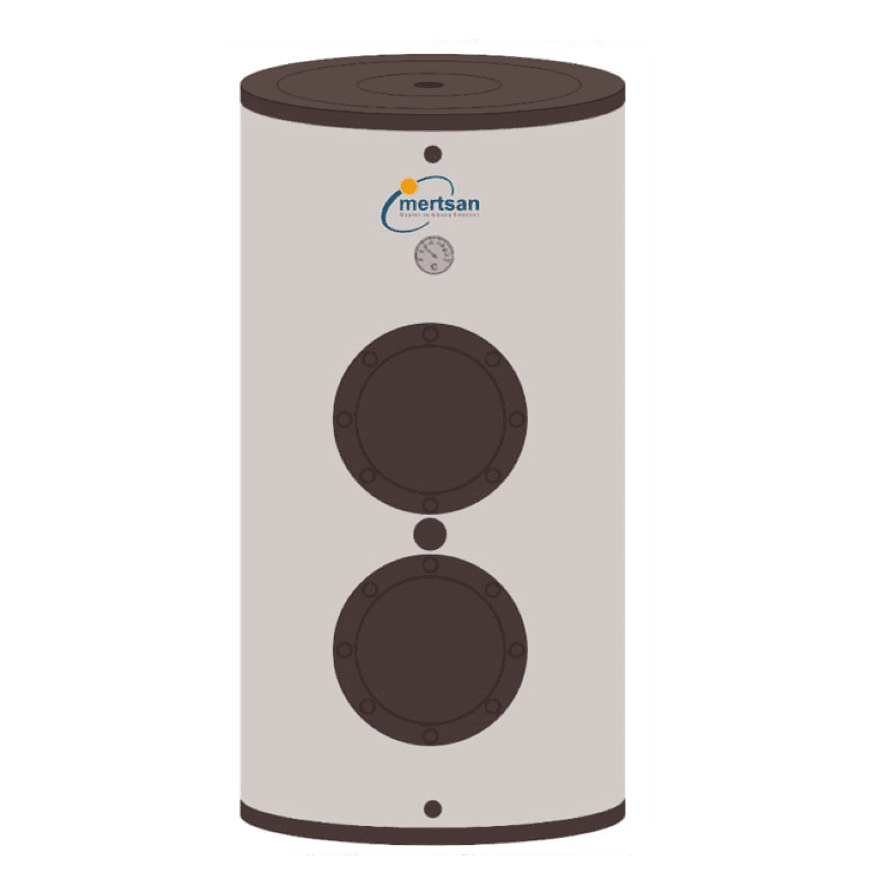

Copper pipe offering high hot water comfort & double serpentine boiler;

- It works fully compatible with condensing devices, boilers, heat pump and solar energy.

High usage water comfort between -160-5000L

-Maximum working pressure (Tank): 10 Bar

-Maximum working pressure(Coil):16 Bar

-Maximum working temperature (Storage): 95°C

-Maximum working temperature(Coil):120°C

-Construction : 5235JR Steel

-Minimum grime thanks to its smooth surface; Hygienic hot water protection and optimum corrosion protection, thanks to its high-quality enamel coating in accordance with DIN 4753-3

-Magnesium anode protection

-High thermal insulation

-Installation-friendly and largely maintenance-free structure

-Corrosion protection with external enamel coating

-Sensor sleeve (1/2") and thermometer.

-Re-circulation connection possibility

-isolation

160-5000L: 18 kg m3 soft PU / Sponge foam

-Outer sheathing

-100-1000L: Termowen, which also provides high-density heat insulation

1500-1000L: Artificial Leather (Vinlex)

-Designed according to TS 736 and TS EN 13445-3 standards.



Capacity and Main Dimensions



Copper Pipe Double Coil Water Heater



 WBC-B

160

 WBC-B

200

WBC-B

300

WBC-B

400

WBC-B

500

WBC-B

800

WBC-B

1000

WBC-B

1500

WBC-B

2000

WBC-B

2500

WBC-B

3000

WBC-B

4000

WBC-B

5000

Volume

V (L) 160 200 300 400 500 800 1000 1500 2000 2500 3000 4000 5000

Diameter

D (mm) 590 590 590 750 750 1010 1010 1120 1260 1440 1440 1710 1710

Height

H (mm) 1060 1300 1810 1380 1620 1620 2010 2280 2280 2450 2750 2550 3050

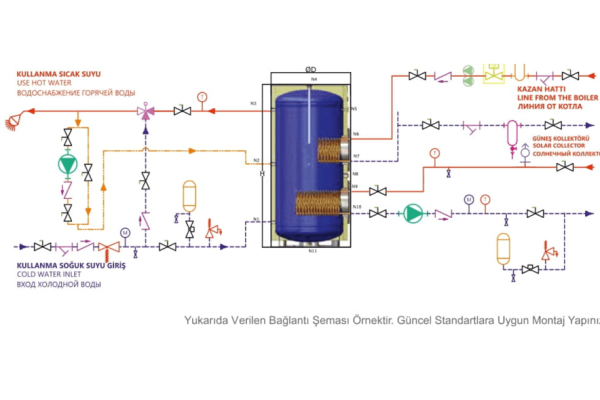

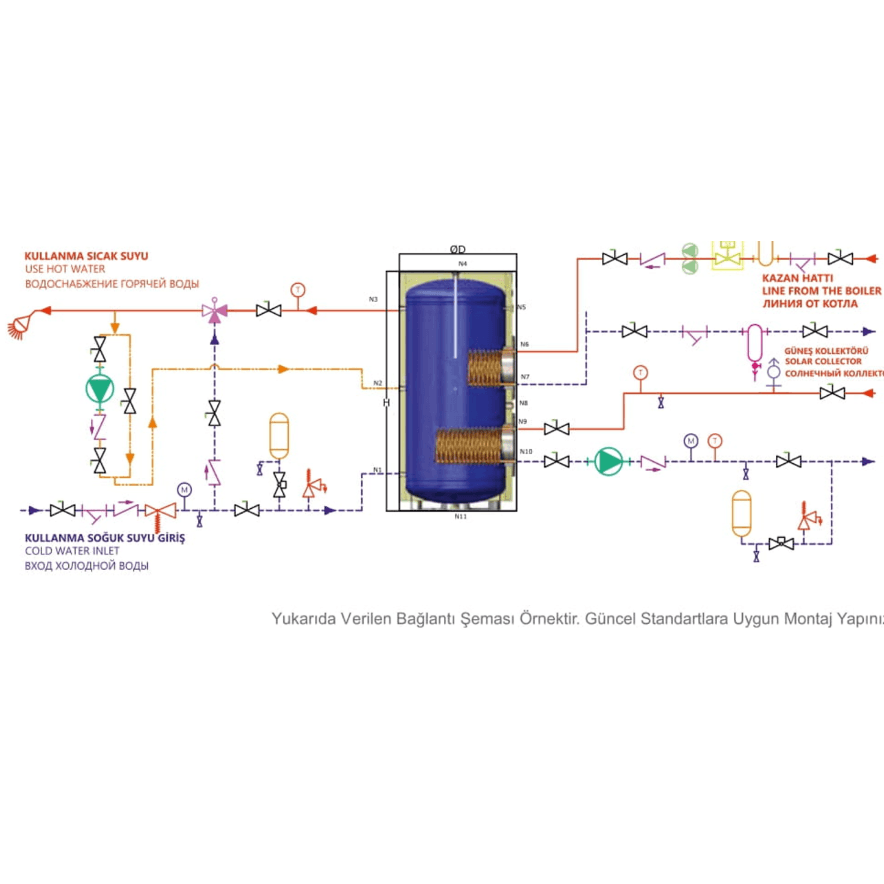

Water Inlet / Outlet

N1 - N3

(inch)

3/4" 3/4" 1" 1" 1" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/2" 1 1/2" 2" 2"

Serpantine Inlet / Outlet

N6 - N7

N9 - N10

(inch)

1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4"

Circulation Connection

N2

(inch)

 3/4"  3/4"  1"  1"  1"  1 1/4"  1 1/4"  1 1/4"  1 1/4"  1 1/2"  1 1/2" 2" 2"

Magnesium Anode

N4

(inch)

1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4"

Additional Elec. Heater

N8

(inch)

  1 1/2"   1 1/2"   1 1/2"   1 1/2"   1 1/2"  2"  2"  2"  2"  2"  2"  2"  2"

Thermometer

N5

(inch)

1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"

Discharge

N11

(inch)

1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4"

Empty Weight

W (kg) 78 95 108 125 156 174 224 320 418 640 815 1100 1250
